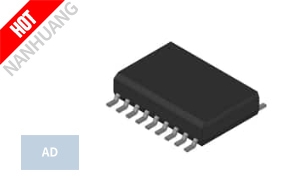

ADG1436TRUZ-EP Images
- Manufacturer: Analog Devices (ADI)
- Category: Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers Package/Case: 16-TSSOP (0.173, 4.40mm Width)
- Description: +/-15V QUAD SPST WITH RON MAX =
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
ADG1436TRUZ-EP Specifications:
- MfrPart.: ADG1436TRUZ-EP
- Mfr: Analog Devices Inc.(ADI, AD)
- Description: +/-15V QUAD SPST WITH RON MAX =
- Product Category: Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers
- Package: Tube
- Series: -
- PartStatus: Active
- SwitchCircuit: SPDT
- Multiplexer/DemultiplexerCircuit: 2:1
- NumberofCircuits: 2
- On-StateResistance(Max): 1.8Ohm
- Channel-to-ChannelMatching(ΔRon): 100mOhm
- Voltage-SupplySingle(V+): 5V, ±4.5V ~ 16.5V, ±16.5V
- Voltage-SupplyDual(V±): 5V, ±4.5V ~ 16.5V, ±16.5V
- SwitchTime(TonToff)(Max): -, -
- -3dbBandwidth: 110MHz
- ChargeInjection: -20pC
- ChannelCapacitance(CS(off)CD(off)): 23pF, 50pF
- Current-Leakage(IS(off))(Max): 550pA
- Crosstalk: -80dB @ 100kHz
- OperatingTemperature: -55°C ~ 125°C (TA)
- MountingType: Surface Mount
- Package/Case: 16-TSSOP (0.173, 4.40mm Width)
- ADG1436TRUZ-EP Analog Devices (ADI), +/-15V QUAD SPST WITH RON MAX =, Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers
ADG1436TRUZ-EP, ADI authentic parts in stock from Analog Devices (ADI) authorized distributors, order today, can ship immediately.
