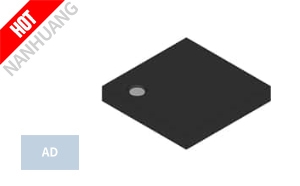

ADG1613BCPZ Images
- Manufacturer: Analog Devices (ADI)
- Category: Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers Package/Case: 16-VQFN Exposed Pad, CSP
- Description: IC SWITCH QUAD SPST 16LFCSP
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
ADG1613BCPZ Specifications:
- MfrPart.: ADG1613BCPZ-REEL7
- Mfr: Analog Devices Inc.(ADI, AD)
- Description: IC SWITCH QUAD SPST 16LFCSP
- Product Category: Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: -
- PartStatus: Active
- SwitchCircuit: SPST - NO/NC
- Multiplexer/DemultiplexerCircuit: 1:1
- NumberofCircuits: 4
- On-StateResistance(Max): 1.1Ohm
- Channel-to-ChannelMatching(ΔRon): 30mOhm
- Voltage-SupplySingle(V+): 3.3V ~ 16V
- Voltage-SupplyDual(V±): ±3.3V ~ 8V
- SwitchTime(TonToff)(Max): 156ns, 87ns
- -3dbBandwidth: 38MHz
- ChargeInjection: 170pC
- ChannelCapacitance(CS(off)CD(off)): 60pF, 60pF
- Current-Leakage(IS(off))(Max): 300pA
- Crosstalk: -110dB @ 1MHz
- OperatingTemperature: -40°C ~ 125°C (TA)
- MountingType: Surface Mount
- Package/Case: 16-VQFN Exposed Pad, CSP
- ADG1613BCPZ Analog Devices (ADI), IC SWITCH QUAD SPST 16LFCSP, Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers
ADG1613BCPZ, ADI authentic parts in stock from Analog Devices (ADI) authorized distributors, order today, can ship immediately.
