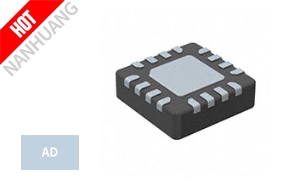

ADGS1414DBCCZ Images
- Manufacturer: Analog Devices (ADI)
- Category: Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers Package/Case: 30-FLGA Exposed Pad
- Description: FULLY INTEGRATED, 1.5 ? RON, 15
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
ADGS1414DBCCZ Specifications:
- MfrPart.: ADGS1414DBCCZ
- Mfr: Analog Devices Inc.(ADI, AD)
- Description: FULLY INTEGRATED, 1.5 ? RON, 15
- Product Category: Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers
- Package: Tray
- Series: -
- PartStatus: Active
- SwitchCircuit: SPST
- Multiplexer/DemultiplexerCircuit: 1:1
- NumberofCircuits: 8
- On-StateResistance(Max): 1.8Ohm
- Channel-to-ChannelMatching(ΔRon): 300mOhm
- Voltage-SupplySingle(V+): 5V ~ 20V, ±4.5V ~ 16.5V
- Voltage-SupplyDual(V±): 5V ~ 20V, ±4.5V ~ 16.5V
- SwitchTime(TonToff)(Max): 475ns, 190ns
- -3dbBandwidth: 170MHz
- ChargeInjection: -20pC
- ChannelCapacitance(CS(off)CD(off)): 20pF, 21pF
- Current-Leakage(IS(off))(Max): 30pA
- Crosstalk: -75dB @ 1MHz
- OperatingTemperature: -40°C ~ 125°C
- MountingType: Surface Mount
- Package/Case: 30-FLGA Exposed Pad
- ADGS1414DBCCZ Analog Devices (ADI), FULLY INTEGRATED, 1.5 ? RON, 15, Integrated Circuits (ICs)~Interface - Analog Switches, Multiplexers, Demultiplexers
ADGS1414DBCCZ, ADI authentic parts in stock from Analog Devices (ADI) authorized distributors, order today, can ship immediately.
